Retractable Canopies
Retractable coverage at the push of a button.
Retractable coverage at the push of a button
Now with ShadeFX retractable canopies, there is a solution that addresses the needs of outdoor living spaces and the people that use them. No longer are you limited to small outdoor spaces attached to your home, umbrellas that offer little to no protection, or products that do nothing to enhance your outdoor living experience.
Be cool and dry
Only ShadeFX retractable canopies cover large areas and protect you and your furniture from sun and rain.
Easy to install
Adapts to all pergolas, arbors, trellises, and structures and installs easily by you or your contractor.
Style & substance
Each one custom designed to integrate with your living space and withstand the elements.
Capabilities
 |

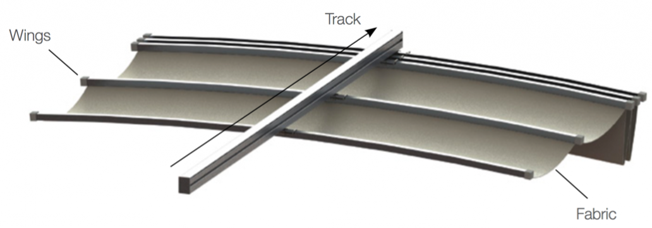

Our revolutionary ‘Single Track Design’ allows for unparalleled coverage, ease of deployment and unrelenting protection from both the sun and rain. ShadeFX systems are engineered to operate without the need for a slope, providing a virtually flat installation. Our innovative solution facilitates even the most eclectic designs and tastes, while setting the new industry standard in outdoor space utility. As demonstrated below, our canopy assembly suspends from the single track, producing a peak which forces rain to run on either side of the canopy track. |
| Flexible Deployment Diverse shapes, orientation, settings and locations. Only ShadeFX uses one drive beam located in the middle of the canopy to operate the mechanism. Since there is only one track, there is no need to align ‘tracks’. This allows ShadeFX to mount to frames of all types, including wood, without concern for jamming or binding as the frame may shift over time. Also, having the canopy supported in the center allows rain to shed to the sides. Although rain may pool it will not accumulate excessively. This makes ShadeFX the only retractable canopy system designed to be left out in the wind and rain that mounts to a frame of your design. |
Wind & Rain Resistance ShadeFX retractable canopies are a fully framed canopy system when extended, with the strength to withstand most winds and even heavy rain. ShadeFX has canopy ‘wings’ that spread out from the drive beam support points unlike roll up awnings that rely on fabric tension for support between their front and back without support in between. For this reason, roll out awnings are not recommended to be left extended in the wind or the rain. Read the “ShadeFX Story” to learn more about the limitations of roll-retractable awnings that inspired the creation of ShadeFX Canopies. |
ShadeFX
|
Roll-Out
|
Fabrics
Start Closed Item
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Fabric Selection
| Harbor Time | Sunbrella | Ferrari |
| Water Repellent | Water Resistant | Water Proof |
| Solid Colors Only | Solid Colors and Stripes | Solid Colors Only |
| 15 Colors | Hundreds of Colors | 33 Colors |
| Non Fire Resistant | Non Fire Resistant | Fire Resistant |
| 7 Year Warranty | 10 Year Warranty | 10 Year Warranty |
Water Resistant, Water Repellant and Water Proof
If canopies are expected to keep an outdoor space dry for the duration of a light rain shower, water resistant fabrics will be suitable for your outdoor space.
In climates that experience greater precipitation, water repellent fabrics may be a more viable solution. This type of fabric is tightly woven and/or coated with a chemical finish that repels water upon contact, rather then allowing it to seep through the material.
If a canopy is subject to constant rain over a course of a week or an entire season, waterproof fabrics are recommended. Waterproof fabrics are not available in patterns, only solid colors, but will ensure a dry outdoor space regardless of precipitation.
Drive Options
 |
Extend and retract the canopy at the push of a button. ShadeFX motor drive systems use food machinery components for the drive belt, bearings, pulleys and transmission for ultra-durable and weather-resistant operation. Extend and retract up to a single 24′ canopy at the push of a button.

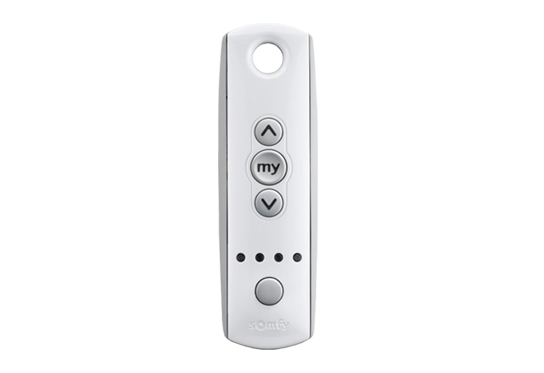

ShadeFX motor drives and controls are supplied by Somfy. Available control options include hand-operated remotes, wall switches, and fully integrated home automation systems. |
 |

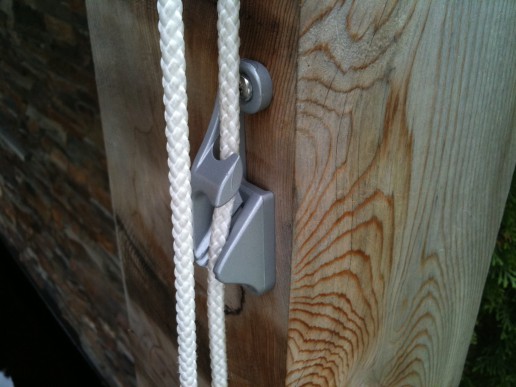

Extend and retract the canopy by pulling on a rope loop anchored to one of the pergola posts or to a wall, if convenient. Lock the canopy in place anywhere along the track by fitting the rope into the retaining cleat. When fully extended or retracted, the rope that is in tension is the rope to fit into the retaining cleat. |
 |

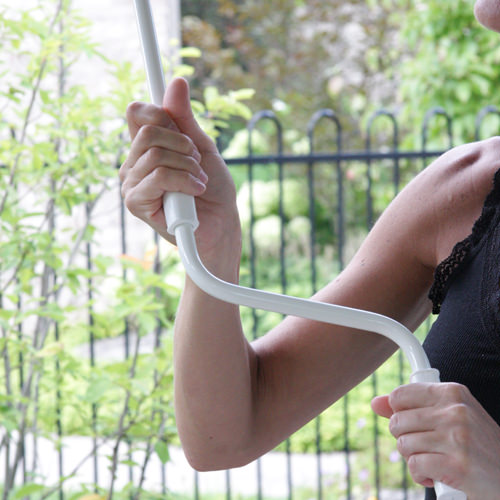

Extend and retract the canopy using a detachable crank handle. Turn the handle counterclockwise to unlock the canopy and pull it out as far as you want. Turn the handle clockwise to lock it in place. You can lock the canopy at any point along the track. |
